Settings - Cord

Cord Dimensions

Cord Radius

This value sets the radius of the cord that is at the outside of the ladder.

Inner Cord Radius

This value sets the radius of the internal cord (vertical and cross).

Tape Width

Value for the width of the ladder tape.

Tape Thickness

Value for the thickness of the ladder tape.

Ladder Offset Horizontal

The distance from the outside edge of the blinds to the ladder.

Ladder Depth

The depth of the ladder. Set this value to the depth of the slat plus some extra for movement.

Cord Settings

Cross Tape

Toggle whether the cross cord is tape or cord.

Ladders

The number of ladders in the blind.

Verticals

Turn on and off the vertical cords.

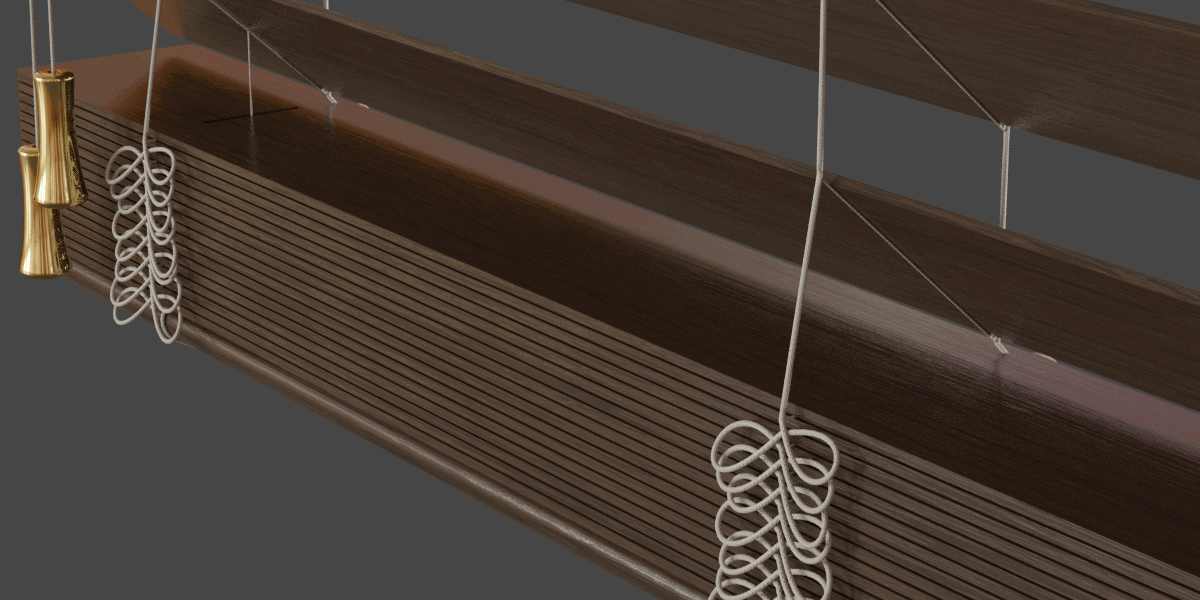

Center Verticals

Some blind designs only have the vertical lines on the outside ladders. This affects whether the center holes are punched in the slats as well.

Cord Tweaks

Cord Resolution X

The number of segments around the cord profile.

Cord Resolution Y

The number of segments along the cord between each slat.

Ladder Top Scale

Taper the top of the ladder to guide it into the headrail.

Ladder Top Offset Z

Offset the top of the ladder into the hole in the headrail. This helps when changing the distance between the top slat and the headrail or to control overshoot.

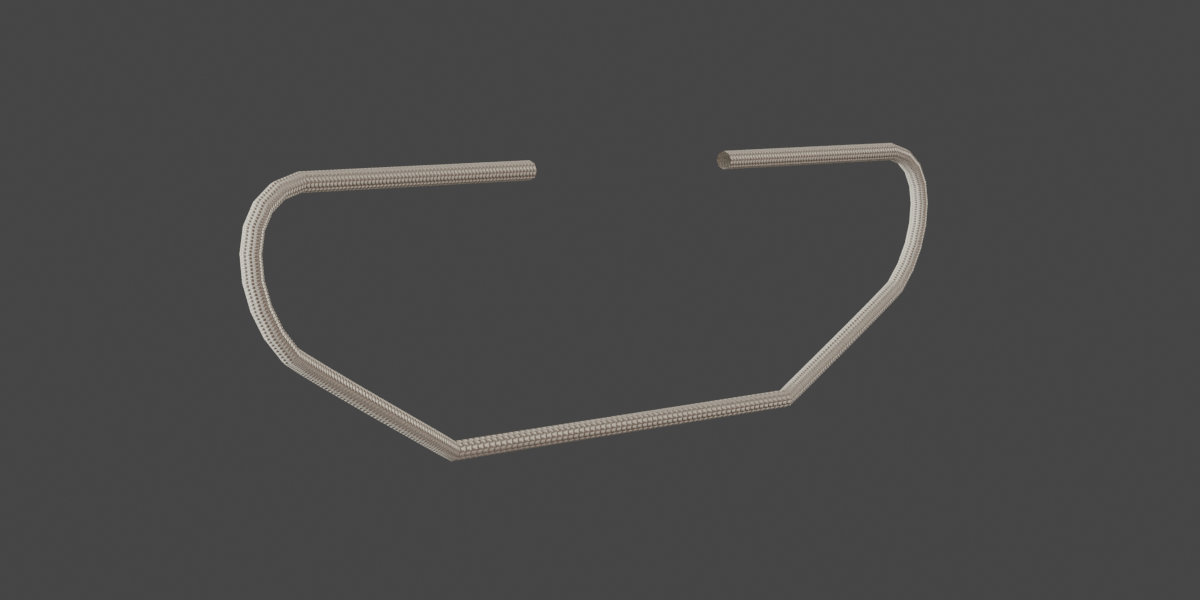

Bottom Rail Profile

This curve is used to add the cord around the bottom rail.
