Settings - Headrail

Headrail Dimensions

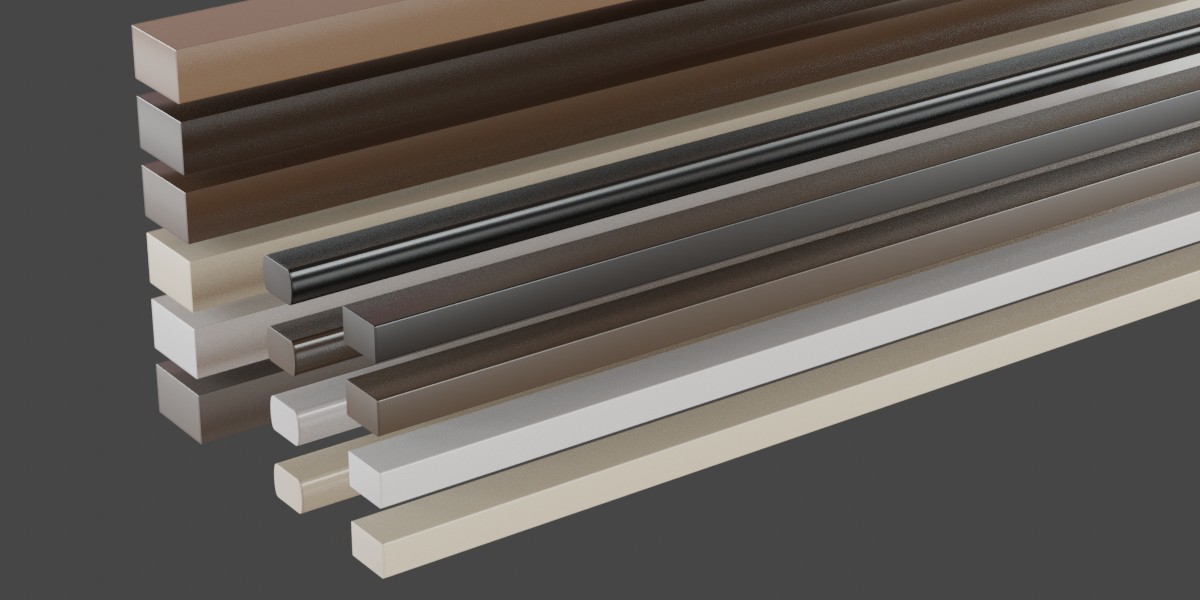

Headrail Object

The headrail object loaded into the blind assembly.

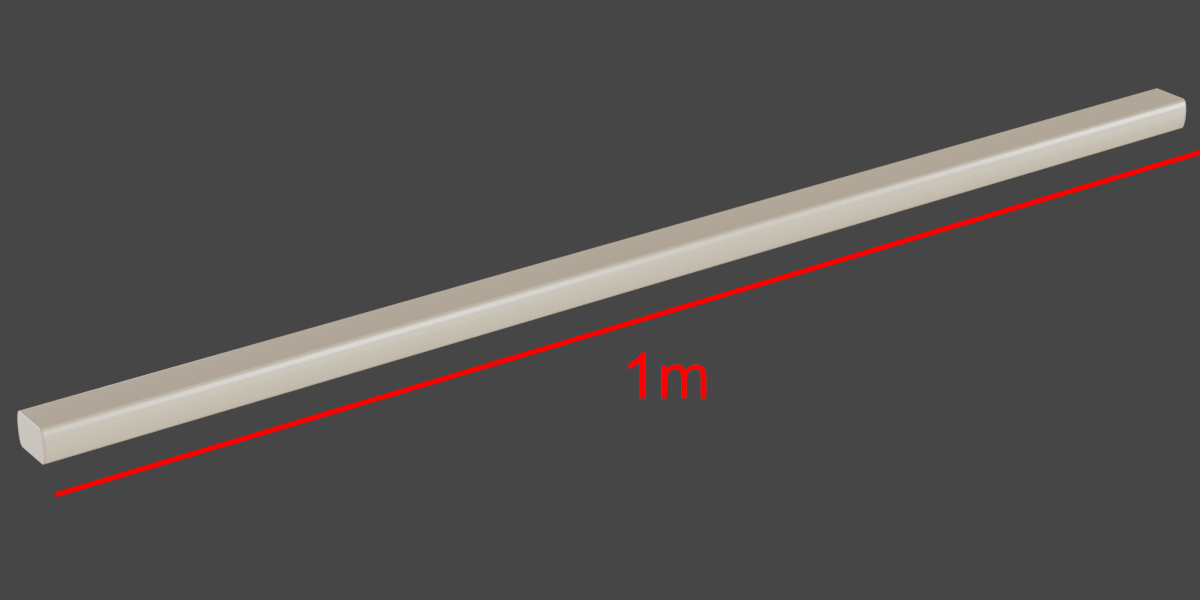

Headrail Base Width

Enter the blind width that the headrail object was designed for.

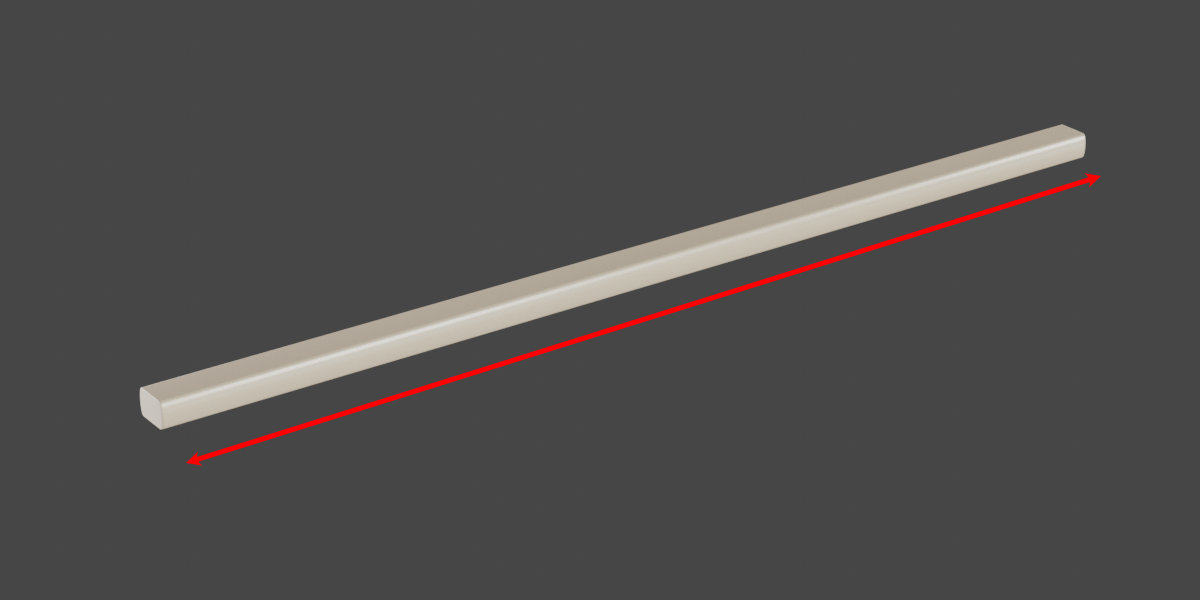

Headrail Extend

Turn on or off whether the headrail extends with the blind assembly. You may want to turn this off if you modeled a headrail to precise measurements and wish to maintain the original scale.

Headrail Cutoff

This is the exact point measured from the center that you want to have the headrail object extend from.

Headrail Offset

Offset the position of the headrail. This helps if your headrail object doesn’t align with the assembly.

Headrail Cord Cutout Settings

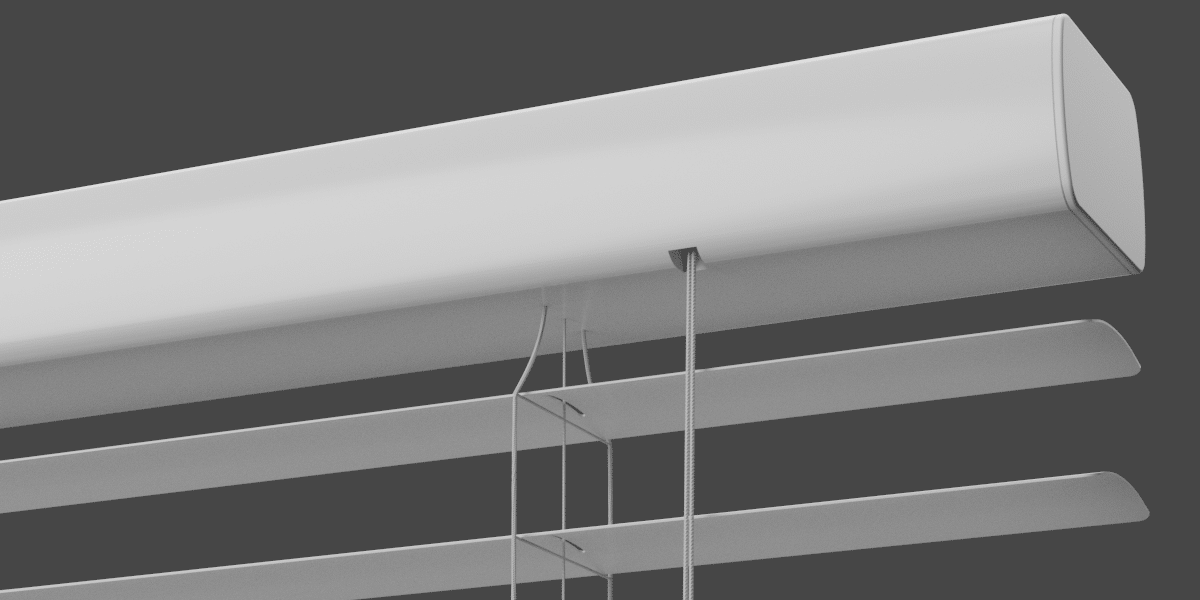

Headrail Cord Cutout

Toggle whether holes are cut into the headrail object for ladder cord to enter.

Headrail Cord Cutout Size

Set the dimensions of the ladder cutout.

Headrail Cord Cutout Offset

Offset the ladder cutout.

Headrail Lift Cutout Settings

Headrail Lift Cutout

Toggle the headrail cutout for the lift control.

Headrail Lift Cutout Size

Set the dimensions of the lift control cutout.

Headrail Lift Cutout Offset

Offset the lift control cutout.

Headrail Tilt Cutout Settings

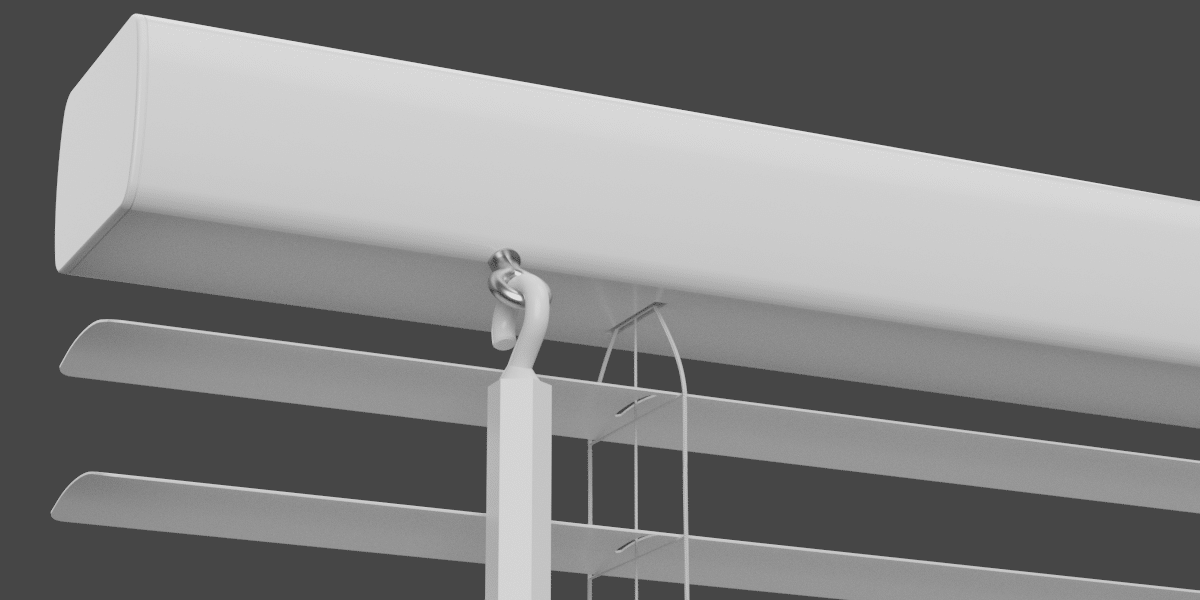

Headrail Tilt Cutout

Toggle the headrail cutout for the tilt control.

Headrail Tilt Cutout Size

Set the dimensions of the tilt control cutout.

Headrail Tilt Cutout Offset

Offset the tilt control cutout.
